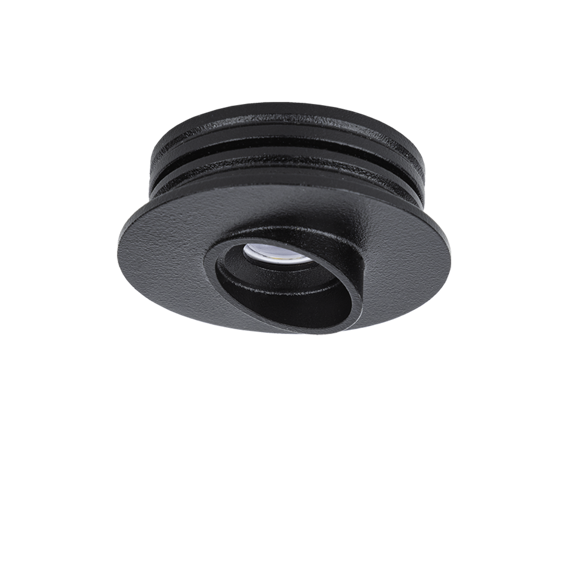

Stretto V 1080X1080 1

Stretto V

Sıva Altı Downlight & Spot Armatür

Optik
15° 40° Lens

Işık Akısı
80 lm

Tüketim Gücü
1 W

Işık Renk Sıcaklığı (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 70KLED ömrü
Renk Seçenekleri
RAL 9005
RAL 9010
RAL 9006
Ürün Özellikleri
  • Armatür Grubu Downlight & Spot
  • Montaj Tipi Sıva Altı
  • Armatür Rengi RAL 9005 - RAL 9010 - RAL 9006
  • Gövde Alüminyum Ekstrüzyon
  • Optik 15° 40° Lens
  • Işık Kaynağı LED
  • Elektriksel Koruma Sınıfı CLASS II
  • IP 40
  • IK 02
  • Çalışma Sıcaklığı -20°C / +40°C
  • Işık Akısı 80 lm
  • Tüketim Gücü 1 W
  • Armatür Verimliliği 80 lm/W
  • Renksel Geri Verim (CRI) >80
  • Işık Renk Sıcaklığı (CCT) 2700K/3000K/4000K/6500K
  • Renk Toleransı < 3 SDCM
  • Driver Tipi On/Off
  • Driver Markası Tridonic
  • LED Markası Samsung
  • Giriş Gerilimi / Frekans 220-240 V AC 50/60 Hz
  • Güç Faktörü >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED ömrü >70.000 saat
  • Opsiyon On-Off / Dali / 1-10V / Acil Durum Kitli

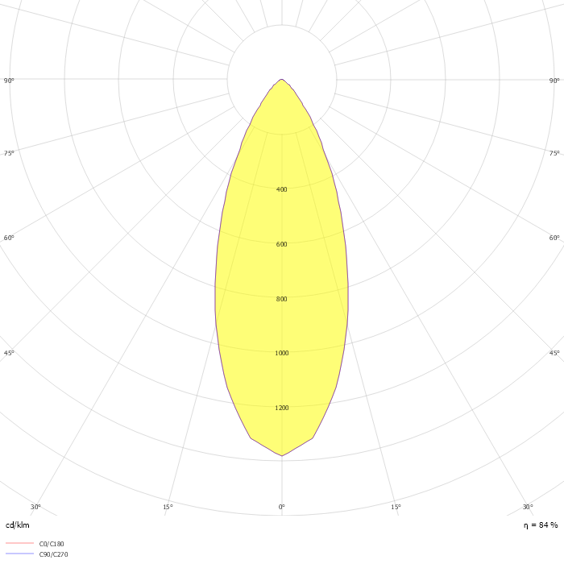

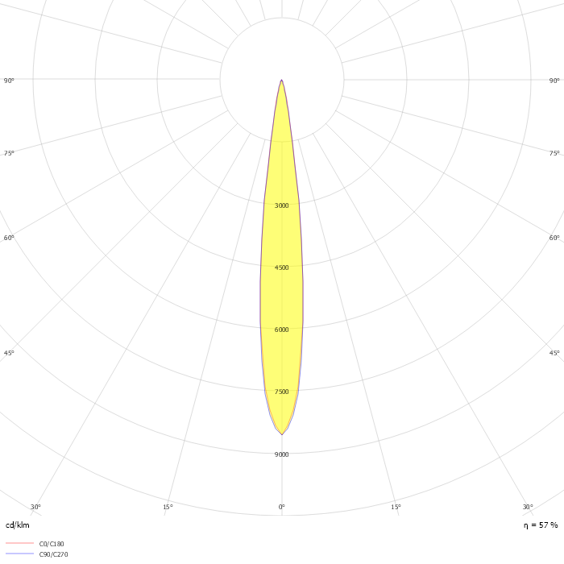

Optik
14º40º
Önceki
Önceki
Ölçüler
Stretto V (1)
Ürün Varyasyonları
Ürün Kodu Güç (W) Işık Akısı (LM) CCT (K) Optik Ölçüler (mm) Datasheet Şartname Metni
STT 004 003 001A 8040 10 15 LN 40 00 V 1 80 4000 15° Lens Ø42x12 Datasheet Şartname Metni
STT 004 003 001A 8040 10 40 LN 40 00 V 1 80 4000 40° Lens Ø42x12 Datasheet Şartname Metni
Download
Benzer Ürünler
Budapeşte 1080X1080
5K6A1818
Budapeşte Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Budapeste A 1 1080X1080
5K6A1818
Budapeşte A Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Rainbow Beyaz 1080X1080
5K6A1817
Rainbow Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Sole 1080X1080 1
Sole Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Recta 1080X1080
5K6A1918
Recta Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Solemandarin 1080X1080 2
Sole Mandarin Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Sturdy S 1080X1080 1
Sturdy S Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Sturdy M 1080X1080 1
Sturdy M Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K
Wina S Hareketli 1080X1080 1
Wina S HR Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K
Wina Trimless Hareketli 1080X1080
Wina S TH Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K
Wina Sabit Trimless 1080X1080
Wina S TS Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K
Wina M 1080X1080
Wina M Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K
Helix 1080X1080
IP65 3217
Helix Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K
Parent Beyaz Tekli 1080X1080
Parent I & II Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K
Rainbow Deep 1080X1080
Rainbow Deep Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006/RAL 9016
2700K/3000K/4000K/6500K
Sharp R 3 1080X1080
Sharp R Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K
Solid 1080X1080 1
Solid Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K
Solid Level 1080X1080 1
Solid Level Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K
Eye M 1080X1080
Eye M Downlight & Spot Sıva Altı RAL 9005/RAL 9006
2700K/3000K/4000K/6500K
Beetle 1080X1080
Beetle Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Flus Recessed Render 1080X1080
Flus Recessed Series Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K
Motus Siyah 1080X1080
Motus S Downlight & Spot Sıva Altı RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K
Motus Beyaz
Motus M Downlight & Spot Sıva Altı RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K
Oblong 1080X1080
Oblong I Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Oblong 1080X1080
Oblong II Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Oblongmini 1080X1080
Oblong Mini I Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Oblongmini 1080X1080
Oblong Mini II Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Ozzo Trimless. 1080X1080
Ozzo Trimless Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Pain 1080X1080
Pain Downlight & Spot Sıva Altı RAL 9005/RAL 9010
2700K/3000K/4000K/6500K
Pure M 1080X1080
Pure M Downlight & Spot Sıva Altı RAL 9005/RAL 9010
2700K/3000K/4000K/6500K
Pure L 1080X1080
Pure L Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K
Space 1080X1080
Space Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K
Space Mini 1080X1080
Space Mini Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

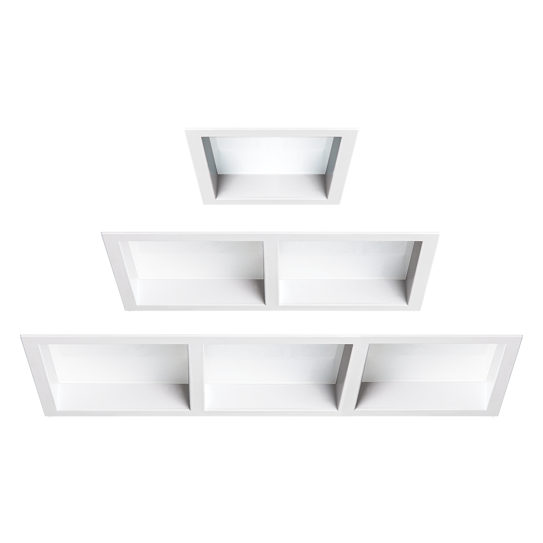

Squarelevel 1080X1080
Square Level Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

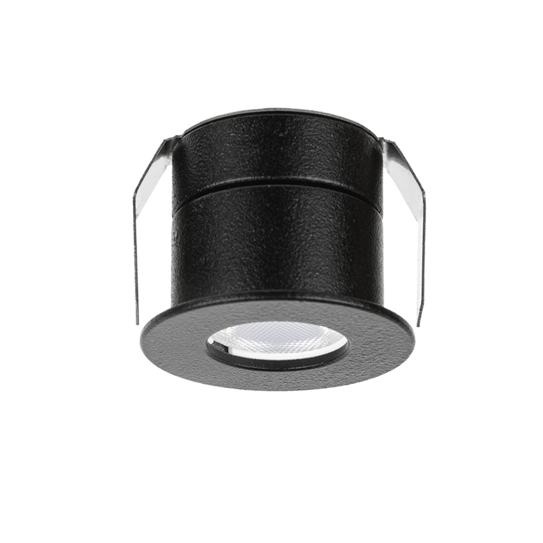

Stretto 1080X1080 1
Stretto Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

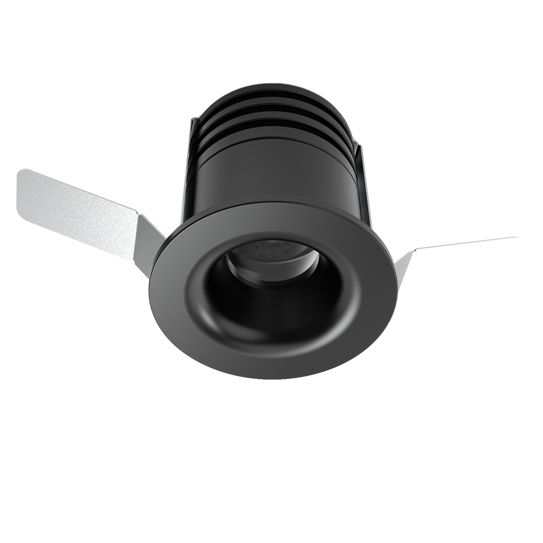

Stretto Deep 1080X1080 (1)
Stretto Deep Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

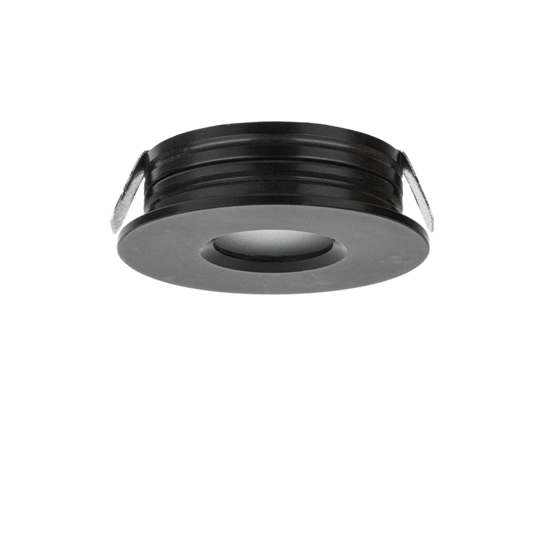

Stretto Level 1080X1080 1
